VFD Frequency Conversion Cabinet

  • Mean time to failure greate: ≥40000 hour (based on backup power quality)
  • Overload Protection: Integral overload protection
  • Short-Circuit Protection: Integral short-circuit protection
  • Under-Voltage Protection: Automatic under-voltage protection
  • Over-Voltage Protection: Integral over-voltage protection
  • Communication Interface: Modbus/TCP/IP protocol support
  • Certifications: IS0,IP3X,EMI

Product Introduction

Used to adjust the frequency of electrical power to improve energy efficiency in a variety of industrial and built environments.

Characteristics of VFD frequency conversion cabinet



  • Speed control: VFD frequency conversion cabinet can adjust the speed of the motor by changing the input frequency of the motor, achieving precise speed control.
  • Significant energy-saving effect: VFD frequency conversion cabinet can adjust motor speed according to actual needs, thereby reducing energy consumption, especially under partial load conditions.
  • Soft start and soft stop: By gradually adjusting the start and stop process of the motor, the impact on the motor and mechanical system is reduced, and the service life of the equipment is extended.
  • Complete protection function: VFD frequency conversion cabinet generally have multiple protection functions such as overcurrent, overvoltage, undervoltage, overheating, and phase loss to ensure the safe operation of equipment and systems.
  • Communication function: Modern VFD frequency conversion cabinet usually support multiple communication protocols, such as Modbus, Profibus, etc., which can be seamlessly integrated with automation systems such as PLC and DCS to achieve remote monitoring and control.
  • User friendly interface: equipped with a user-friendly HMI (Human Machine Interface), making it easy for operators to set parameters and monitor status.
Parameter Value
Rated Voltage(Un) 400V/690V
Rated Power(Sn) 2.2kW-800kW
Variable Frequency (f) 50Hz/60Hz
Static Noise Level(N) ≤60dB
Anticlagging Design Advanced anticlagging mechanism
Voltage Compatibility Global voltage adaptability
EMI Protection EMI protection mechanism
Overvoltage Protection Built-in overvoltage protection
Overcurrent Protection Integral overcurrent protection

VFD Frequency Conversion Cabinet Application Fields

The function and value of VFD frequency conversion cabinet in the field of industrial automation

Precise control and improvement of production efficiency:

Through precise speed and torque control, VFD frequency conversion cabinet can optimize production processes, improve product quality and production efficiency. For example, in the textile industry, by precisely controlling the speed of the textile machine, the consistency of fabric quality can be ensured.


Energy conservation and consumption reduction:

By adjusting the motor operating speed to match the actual load, VFD frequency conversion cabinet can significantly reduce energy consumption. For example, in pump and fan applications, adjusting speed to meet actual needs can avoid unnecessary energy waste.

Extend equipment lifespan:

By reducing the mechanical stress during motor start-up and shutdown, VFD frequency conversion cabinet can extend the service life of motors and associated mechanical equipment, reduce maintenance costs and downtime.

Improve automation level:

The seamless integration of VFD frequency conversion cabinet with control systems such as PLC can achieve a higher level of automation control. For example, in automated production lines, complex process control and coordination can be achieved through the linkage between VFD frequency conversion cabinet and PLCs.

Enhance system stability and security:

Through various protection functions, VFD frequency conversion cabinet can protect motors and systems from various electrical faults, ensuring the stable operation of production systems. For example, in the chemical industry, the protection function of VFD frequency conversion cabinet can prevent motor overload and overheating, thereby ensuring production safety.

Flexibility and adaptability:

The programmable characteristics of VFD frequency conversion cabinet enable them to adapt to various application scenarios and process requirements. For example, in the food processing industry, different speed and torque settings can be used to adapt to different processing stages and product requirements.

VFD frequency conversion cabinet Practical application cases

  • HVAC system: In the HVAC system of large buildings, adjusting the speed of fans and pumps through VFD frequency conversion cabinet can achieve efficient temperature and humidity control, improve comfort, and save energy.

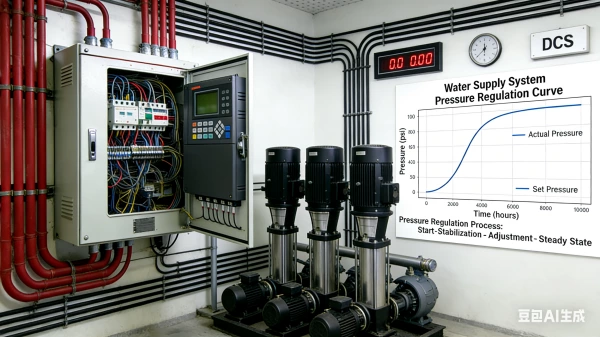

  • Water supply system: In water supply and sewage treatment systems, VFD frequency conversion cabinet are used to regulate the flow and pressure of water pumps, ensuring stable operation and energy-saving effects of the system.

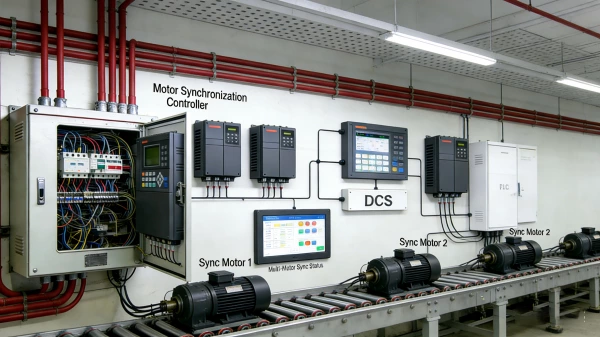

  • Manufacturing industry: In various manufacturing industries, VFD frequency conversion cabinet are used for speed control and process optimization of various motors, improving production efficiency and product quality.

In short, VFD frequency conversion cabinet have irreplaceable functions and value in the field of industrial automation. Through their excellent speed control, energy-saving effect, and protection function, they not only improve production efficiency and product quality, but also greatly reduce energy consumption and maintenance costs, promoting the improvement of industrial automation level.
